PROFESSIONAL GRADE W/DUAL GRINDING AID FLAP DISCS

THE BENEFITS OF COATED ABRASIVES

Coated abrasives consist out of a backing material – typically paper, woven cloth, cloth/paper combination, polyester film or vulcanized fiber – to which is bonded one of the abrasive grain types listed in our abrasive grain section.

An initial ‘make’ coating of resin is applied to the backing, the chosen abrasive grain is then electro-coated onto the surface, followed by a second or ‘ size’ coating of resin to lock in the abrasive particles.

Following an oven cure, the resulting materials are converted into various forms, shapes and sizes of belts, rolls, discs or wheels to grind, de-burr, finish and polish products in a vast range of applications.

ZIRCONIA ALUMINA (FOR STAINLESS) FLAP DISCS
ARBOR HOLE – STANDARD DENSITY

ZIRCONIA ALUMINA (FOR STAINLESS) FLAP DISCS
ARBOR HOLE – HIGH DENSITY

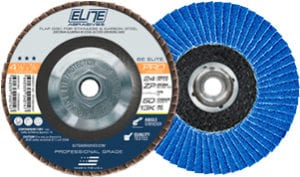

ZIRCONIA ALUMINA (FOR STAINLESS) FLAP DISCS
THREADED HUB – STANDARD DENSITY

ZIRCONIA ALUMINA (FOR STAINLESS) FLAP DISCS
THREADED HUB – HIGH DENSITY

PROFESSIONAL SERIES – ZIRCONIA GRAIN, STANDARD DENSITY, TYPE 27 & TYPE 29, ARBOR HOLE
SIZE GRIT DENSITY GRADE STOCK STATUS MAX RPM BOX QTY CARTON QTY T27 PART # T29 PART # MSRP
4 x 5/8 36 Standard Density Professional Grade Make 15,300 10 100 12801 13001 3.99
4 x 5/8 40 Standard Density Professional Grade Make 15,300 10 100 12802 13002 3.99
4 x 5/8 50 Standard Density Professional Grade Make 15,300 10 100 12803 13003 3.99
4 x 5/8 60 Standard Density Professional Grade Make 15,300 10 100 12804 13004 3.99
4 x 5/8 80 Standard Density Professional Grade Make 15,300 10 100 12805 13005 3.99
4 x 5/8 36 High Density Professional Grade Make 15,300 10 100 12811 13011 5.06
4 x 5/8 40 High Density Professional Grade Make 15,300 10 100 12812 13012 5.06
4 x 5/8 50 High Density Professional Grade Make 15,300 10 100 12813 13013 5.06
4 x 5/8 60 High Density Professional Grade Make 15,300 10 100 12814 13014 5.06
4 x 5/8 80 High Density Professional Grade Make 15,300 10 100 12815 13015 5.06
4.5 x 7/8 36 Standard Density Professional Grade Make 13,300 10 100 12821 13021 5.13
4.5 x 7/8 40 Standard Density Professional Grade Make 13,300 10 100 12822 13022 5.13
4.5 x 7/8 50 Standard Density Professional Grade Make 13,300 10 100 12823 13023 4.60
4.5 x 7/8 60 Standard Density Professional Grade Make 13,300 10 100 12824 13024 4.60
4.5 x 7/8 80 Standard Density Professional Grade Make 13,300 10 100 12825 13025 4.60
4.5 x 7/8 36 High Density Professional Grade Make 13,300 10 100 12831 13031 6.77
4.5 x 7/8 40 High Density Professional Grade Make 13,300 10 100 12832 13032 6.77
4.5 x 7/8 50 High Density Professional Grade Make 13,300 10 100 12833 13033 6.47
4.5 x 7/8 60 High Density Professional Grade Make 13,300 10 100 12834 13034 6.47
4.5 x 7/8 80 High Density Professional Grade Make 13,300 10 100 12835 13035 6.47
5 x 7/8 36 Standard Density Professional Grade Make 12,200 10 100 12841 13041 5.86
5 x 7/8 40 Standard Density Professional Grade Make 12,200 10 100 12842 13042 5.86
5 x 7/8 50 Standard Density Professional Grade Make 12,200 10 100 12843 13043 5.44
5 x 7/8 60 Standard Density Professional Grade Make 12,200 10 100 12844 13044 5.44
5 x 7/8 80 Standard Density Professional Grade Make 12,200 10 100 12845 13045 5.44
5 x 7/8 36 High Density Professional Grade Make 12,200 10 100 12851 13051 7.64
5 x 7/8 40 High Density Professional Grade Make 12,200 10 100 12852 13052 7.64
5 x 7/8 50 High Density Professional Grade Make 12,200 10 100 12853 13053 7.23
5 x 7/8 60 High Density Professional Grade Make 12,200 10 100 12854 13054 7.23
5 x 7/8 80 High Density Professional Grade Make 12,200 10 100 12855 13055 7.23
6 x 7/8 36 Standard Density Professional Grade Make 10,200 10 100 12861 13061 6.57
6 x 7/8 40 Standard Density Professional Grade Make 10,200 10 100 12862 13062 6.57
6 x 7/8 50 Standard Density Professional Grade Make 10,200 10 100 12863 13063 5.93
6 x 7/8 60 Standard Density Professional Grade Make 10,200 10 100 12864 13064 5.93
6 x 7/8 80 Standard Density Professional Grade Make 10,200 10 100 12865 13065 5.93
6 x 7/8 36 High Density Professional Grade Make 10,200 10 100 12871 13071 8.38
6 x 7/8 40 High Density Professional Grade Make 10,200 10 100 12872 13072 8.38
6 x 7/8 50 High Density Professional Grade Make 10,200 10 100 12873 13073 8.01
6 x 7/8 60 High Density Professional Grade Make 10,200 10 100 12874 13074 8.01
6 x 7/8 80 High Density Professional Grade Make 10,200 10 100 12875 13075 8.01
7 x 7/8 36 Standard Density Professional Grade Make 8,600 10 100 12881 13081 11.35
7 x 7/8 40 Standard Density Professional Grade Make 8,600 10 100 12882 13082 11.35
7 x 7/8 50 Standard Density Professional Grade Make 8,600 10 100 12883 13083 10.95
7 x 7/8 60 Standard Density Professional Grade Make 8,600 10 100 12884 13084 10.95
7 x 7/8 80 Standard Density Professional Grade Make 8,600 10 100 12885 13085 10.95
7 x 7/8 36 High Density Professional Grade Make 8,600 10 100 12891 13091 15.00
7 x 7/8 40 High Density Professional Grade Make 8,600 10 100 12892 13092 15.00
7 x 7/8 50 High Density Professional Grade Make 8,600 10 100 12893 13093 14.40
7 x 7/8 60 High Density Professional Grade Make 8,600 10 100 12894 13094 14.40
7 x 7/8 80 High Density Professional Grade Make 8,600 10 100 12895 13095 14.40
4 x 3/8-24 36 Standard Density Professional Grade Make 15,300 5 50 12901 13101 5.19
4 x 3/8-24 40 Standard Density Professional Grade Make 15,300 5 50 12902 13102 5.19
4 x 3/8-24 50 Standard Density Professional Grade Make 15,300 5 50 12903 13103 5.19
4 x 3/8-24 60 Standard Density Professional Grade Make 15,300 5 50 12904 13104 5.19
4 x 3/8-24 80 Standard Density Professional Grade Make 15,300 5 50 12905 13105 5.19
4 x 3/8-24 36 High Density Professional Grade Make 15,300 5 50 12911 13111 6.26
4 x 3/8-24 40 High Density Professional Grade Make 15,300 5 50 12912 13112 6.26
4 x 3/8-24 50 High Density Professional Grade Make 15,300 5 50 12913 13113 6.26
4 x 3/8-24 60 High Density Professional Grade Make 15,300 5 50 12914 13114 6.26
4 x 3/8-24 80 High Density Professional Grade Make 15,300 5 50 12915 13115 6.26
4.5 x 5/8-11 36 Standard Density Professional Grade Make 13,300 5 50 12921 13121 6.33
4.5 x 5/8-11 40 Standard Density Professional Grade Make 13,300 5 50 12922 13122 6.33
4.5 x 5/8-11 50 Standard Density Professional Grade Make 13,300 5 50 12923 13123 5.80
4.5 x 5/8-11 60 Standard Density Professional Grade Make 13,300 5 50 12924 13124 5.80
4.5 x 5/8-11 80 Standard Density Professional Grade Make 13,300 5 50 12925 13125 5.80
4.5 x 5/8-11 36 High Density Professional Grade Make 13,300 5 50 12931 13131 7.97
4.5 x 5/8-11 40 High Density Professional Grade Make 13,300 5 50 12932 13132 7.97
4.5 x 5/8-11 50 High Density Professional Grade Make 13,300 5 50 12933 13133 7.67
4.5 x 5/8-11 60 High Density Professional Grade Make 13,300 5 50 12934 13134 7.67
4.5 x 5/8-11 80 High Density Professional Grade Make 13,300 5 50 12935 13135 7.67
5 x 5/8-11 36 Standard Density Professional Grade Make 12,200 5 50 12941 13141 7.06
5 x 5/8-11 40 Standard Density Professional Grade Make 12,200 5 50 12942 13142 7.06
5 x 5/8-11 50 Standard Density Professional Grade Make 12,200 5 50 12943 13143 6.64
5 x 5/8-11 60 Standard Density Professional Grade Make 12,200 5 50 12944 13144 6.64
5 x 5/8-11 80 Standard Density Professional Grade Make 12,200 5 50 12945 13145 6.64
5 x 5/8-11 36 High Density Professional Grade Make 12,200 5 50 12951 13151 8.84
5 x 5/8-11 40 High Density Professional Grade Make 12,200 5 50 12952 13152 8.84
5 x 5/8-11 50 High Density Professional Grade Make 12,200 5 50 12953 13153 8.43
5 x 5/8-11 60 High Density Professional Grade Make 12,200 5 50 12954 13154 8.43
5 x 5/8-11 80 High Density Professional Grade Make 12,200 5 50 12955 13155 8.43
6 x 5/8-11 36 Standard Density Professional Grade Make 10,200 5 50 12961 13161 7.77
6 x 5/8-11 40 Standard Density Professional Grade Make 10,200 5 50 12962 13162 7.77
6 x 5/8-11 50 Standard Density Professional Grade Make 10,200 5 50 12963 13163 7.13
6 x 5/8-11 60 Standard Density Professional Grade Make 10,200 5 50 12964 13164 7.13
6 x 5/8-11 80 Standard Density Professional Grade Make 10,200 5 50 12965 13165 7.13
6 x 5/8-11 36 High Density Professional Grade Make 10,200 5 50 12971 13171 9.58
6 x 5/8-11 40 High Density Professional Grade Make 10,200 5 50 12972 13172 9.58
6 x 5/8-11 50 High Density Professional Grade Make 10,200 5 50 12973 13173 9.21
6 x 5/8-11 60 High Density Professional Grade Make 10,200 5 50 12974 13174 9.21
6 x 5/8-11 80 High Density Professional Grade Make 10,200 5 50 12975 13175 9.21
7 x 5/8-11 36 Standard Density Professional Grade Make 8,600 5 50 12981 13181 12.95
7 x 5/8-11 40 Standard Density Professional Grade Make 8,600 5 50 12982 13182 12.95
7 x 5/8-11 50 Standard Density Professional Grade Make 8,600 5 50 12983 13183 12.55
7 x 5/8-11 60 Standard Density Professional Grade Make 8,600 5 50 12984 13184 12.55
7 x 5/8-11 80 Standard Density Professional Grade Make 8,600 5 50 12985 13185 12.55
7 x 5/8-11 36 High Density Professional Grade Make 8,600 5 50 12991 13191 16.60
7 x 5/8-11 40 High Density Professional Grade Make 8,600 5 50 12992 13192 16.60
7 x 5/8-11 50 High Density Professional Grade Make 8,600 5 50 12993 13193 16.00
7 x 5/8-11 60 High Density Professional Grade Make 8,600 5 50 12994 13194 16.00
7 x 5/8-11 80 High Density Professional Grade Make 8,600 5 50 12995 13195 16.00
